• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• CIE, Chung Instrument Electronics Industrial Co. Ltd.; New Taipei

• Year
• 1983 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 347484

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• 2SC2859 KAD7001 1N4148 unknown_Display

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Multimeter 113 - CIE, Chung Instrument

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• CIE, Chung Instrument Electronics Industrial Co. Ltd.,

  Digital Multimeter 113

  Autorrange 3-¾ digit LCD display with 33 segment bar-graph.

  Range Selection, Display Hold, Autopower-Off, Diode Test, Continuity Check (beeper)

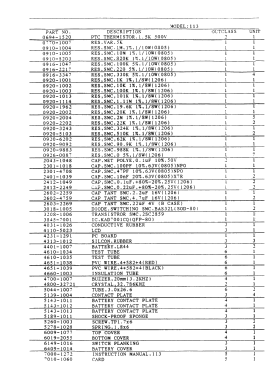

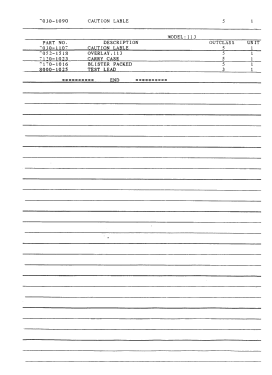

• Literature/Schematics (1)

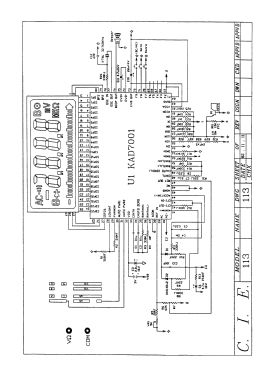

• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
