Logic Probe 610B

CIE, Chung Instrument Electronics Industrial Co. Ltd.; New Taipei

Data
Forum
Pictures
Collections

  • Year
  • 1985 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 347567

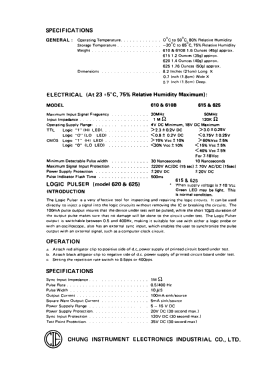

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit. / 4-18 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Logic Probe 610B - CIE, Chung Instrument
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 0.7 x 8.2 x 0.7 inch / 18 x 208 x 18 mm
  • Notes

  • CIE, Chung Instrument Electronics Industrial Co. Ltd.,

    Logic Probe 610B

    • Input Frequency: 20 MHz @ 1 MΩ
    • Led Indicator: HI - red; LO - green; Pulse/Memory - yellow
    • Beeper: Hight tone or Low tone according to logic
    • Switch selectable TTL or CMOS
  • Net weight (2.2 lb = 1 kg)
  • 0 lb 1.6 oz (0.1 lb) / 0.045 kg
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
