• Country
• United States of America (USA)

• Manufacturer / Brand
• CINO Radio Manufacturing Co.; Cincinnati, OH

• Year
• 1921

• Category
• Radio module pre 1926 (not a part, not a key)

• Radiomuseum.org ID
• 196015

• Number of Tubes
• 1

• Valves / Tubes
• UV200

• Main principle
• Detector with Vacuum Tube (Valve), no tuner

• Wave bands
• - without

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Detector Cabinet Type CD1 - CINO Radio Manufacturing Co.;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 8 x 7.75 x 8.5 inch / 203 x 197 x 216 mm

• Notes
• The Cino Detector Cabinet was advertised along with the Cino Regenerative Tuner in the May 1921 Radio News magazine. This vacuum tube control panel was necessary to complete the regeneration circuit in the Cino regenerative Tuner.

• Price in first year of sale
• 19.00 $

• Mentioned in

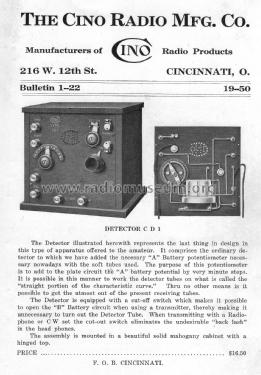

• - - Manufacturers Literature (The Cino Radio Mfg. Co. Series B Bulletin 1-22 page 5 n)

• Literature/Schematics (1)
• May 1921 Radio News magazine

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.
