LCD Colour TV ST655-1B

Citizen Electronics Co., Ltd., Fujiyoshida

Data
Forum
Pictures
Collections

  • Year
  • 1994 ??
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 335836

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Batteries / addl. power jack / UM-3: 4 x 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: LCD Colour TV ST655-1B - Citizen Electronics Co., Ltd.,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 80 x 130 x 33 mm / 3.1 x 5.1 x 1.3 inch
  • Notes

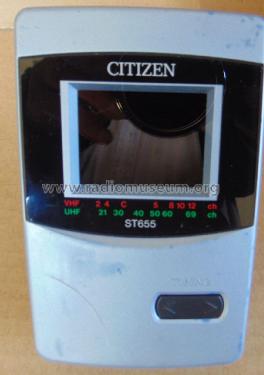

  • Citizen Handheld LCD Colour TV ST655-1B

    • PAL-I colour TV system
    • Automatic tuning system
    • Screen size 2.2 in / 5.6 cm (33.6 x 44.6 mm)
    • No. of pixels 62'400 (130 x 480)
    • Battery life approx. 3.0 hours with alcaline batteries

    Made in China

  • Net weight (2.2 lb = 1 kg)
  • 0.230 kg / 0 lb 8.1 oz (0.507 lb)
  • Author
  • Model page created by Manfred Rathgeb. See "Data change" for further contributors.
