• Country
• Japan

• Manufacturer / Brand
• Citizen Electronics Co., Ltd., Fujiyoshida

• Year
• 1988 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 194864

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

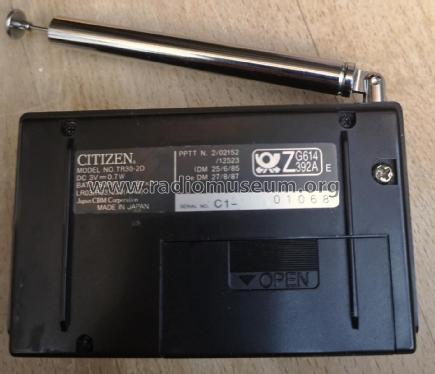

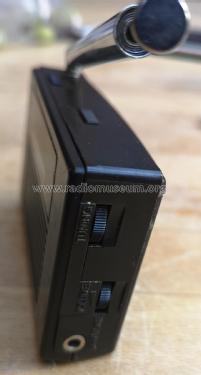

• Model: Pocket TV Receiver TR30-2D - Citizen Electronics Co., Ltd.,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 95 x 60 x 22 mm / 3.7 x 2.4 x 0.9 inch

• Notes
• Citizen Pocket TV Receiver;
  CCIR B/G electronic tuner, TV sound only, 3.5 mm earphones out and AF in, for use with M329 (TC56) LCD color video monitor.

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 34 models, 32 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
