Stereo Mixer SM506-1

Citronic Ltd.; Melksham

Data
Forum
Pictures
Collections

  • Year
  • 1978 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 301558

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Mixer SM506-1 - Citronic Ltd.; Melksham
  • Shape
  • Rack
  • Dimensions (WHD)
  • 610 x 170 x 150 mm / 24 x 6.7 x 5.9 inch
  • Notes

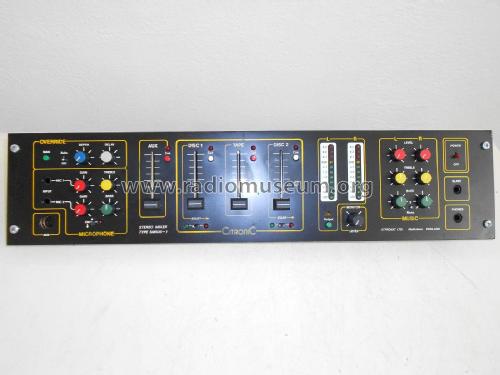

  • 6 input channel: n 2 mic/n. 2 phono/ tape/aux - input: mic 25 mV into 47 kΩ - disc 4 mV into 47 kΩ - tape 400 mV into 40 kΩ - auxiliary 150 mV into 68 kΩ - output: 775 mV, impedance 25 kΩ - tone networks: +/- 14 dB -  control level/treble/bass - monitor/ cue - start disc 1/2 - override man/auto - depth/delay -  gain mic 1-2 with treble/bass control - VU meter led L/R - output slave/phone.

    Made in England

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
