Receiving Set No. 14
Clapp-Eastham Co.; Cambridge, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Clapp-Eastham Co.; Cambridge, MA
- Year
- 1910
- Category
- Detector-Radio (Crystal or diode, without tubes/transistors)
- Radiomuseum.org ID
- 304291
-
- Brand: Radak
- Main principle
- Crystal or Solid State Detector
- Wave bands
- Broadcast and LongWave in ONE range.
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: Receiving Set No. 14 - Clapp-Eastham Co.; Cambridge,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
It consists of a Receiving Transformer (loose coupler), two Ferron Detectors, Tubular Condenser and a 2000 ohm Telephone Head Set all mounted in a mahogany cabinet with binding post and detector switch.
This set is similar to the No. 16 set except variable condensers are not provided.
This set was also very similar to the Set No. 6040 advertised by JJ Duck in April, 1910.
- Price in first year of sale
- 40.00 $
- Mentioned in

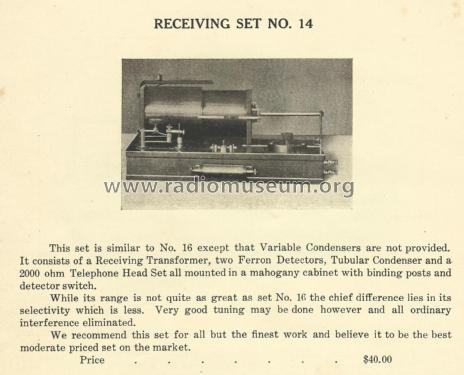

- - - Manufacturers Literature (1910 Clapp-Eastham Wireless Telegraph Apparatus Catalog G Page 20)
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
