- Country
- United States of America (USA)
- Manufacturer / Brand
- Clarion, Transformer Corp. of America (TCA); Chicago, IL
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 332550
-
- Brand: Clarion
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); Export model
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

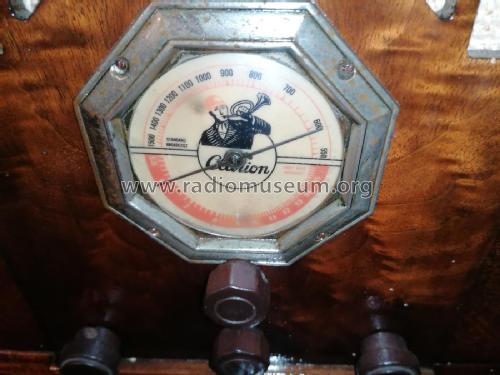

- Model: TC 35 - Clarion, Transformer Corp. of
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 295 x 390 x 185 mm / 11.6 x 15.4 x 7.3 inch
- Notes
-
Schematic may be similar to TC-35LW (Late)
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Author
- Model page created by Francisco Martins. See "Data change" for further contributors.
