10 Transistor 88A

Clarion Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 340889

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 452.5 / 10.7 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Storage and/or dry batteries / 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
  • Power out
  • 0.5 W (undistorted)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: 10 Transistor 88A - Clarion Co., Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 205 x 55 x 165 mm / 8.1 x 2.2 x 6.5 inch
  • Notes

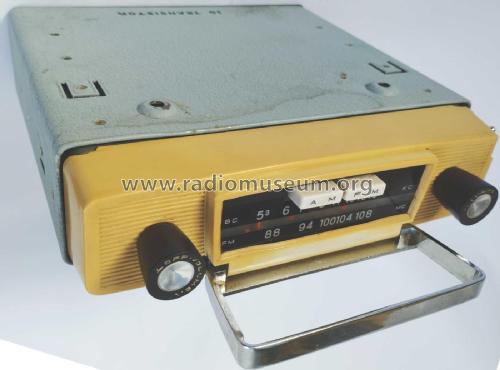

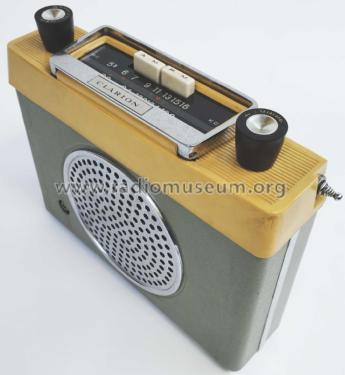

  • Portable Car Radio with mounting bracket for 6/12 V car operation.
    Output Power 1 W at 12 Volt car operation

    Wave Ranges
    FM 88 - 108 MHz
    AM 535 - 1605 kHz

  • Net weight (2.2 lb = 1 kg)
  • 1.620 kg / 3 lb 9.1 oz (3.568 lb)
  • Author
  • Model page created by Marc Gianella. See "Data change" for further contributors.
