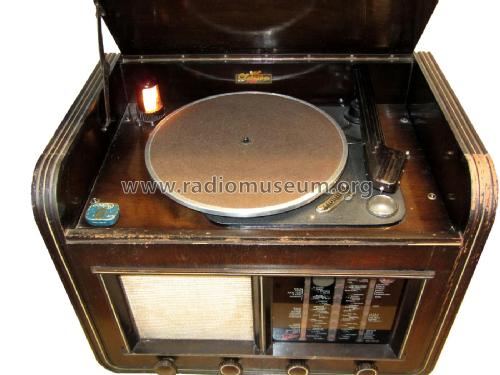

Crucero de los Mares RG-155-B
Clarión; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Clarión; Barcelona
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 300222
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 135; 150 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Power out
- 4.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Crucero de los Mares RG-155-B - Clarión; Barcelona
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 545 x 410 x 370 mm / 21.5 x 16.1 x 14.6 inch
- Net weight (2.2 lb = 1 kg)
- 19.2 kg / 42 lb 4.7 oz (42.291 lb)
- Author
- Model page created by Jordi Cardona Serra. See "Data change" for further contributors.
