C-70-C con PCL84

Clarivox, S.A., Electrónica; Zaragoza

Data

Forum

Pictures

Collections

Country
Spain

Manufacturer / Brand
Clarivox, S.A., Electrónica; Zaragoza

Year
1966

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
310530

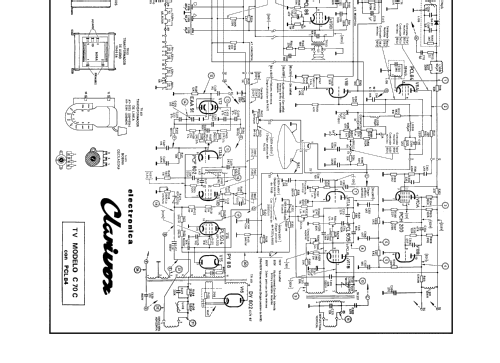

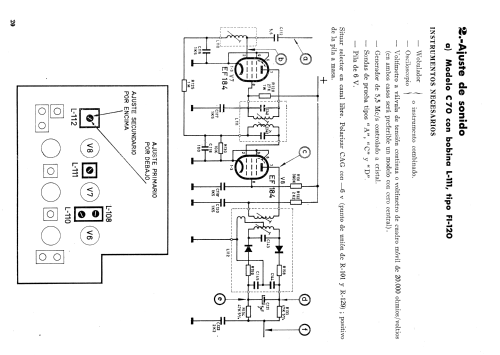

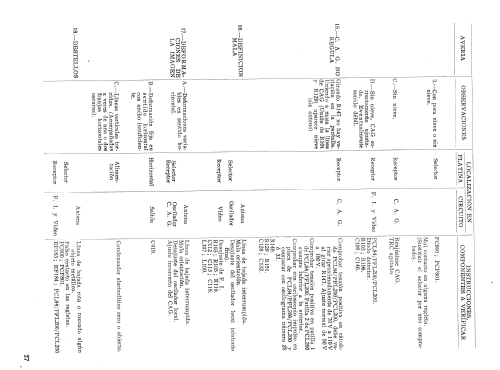

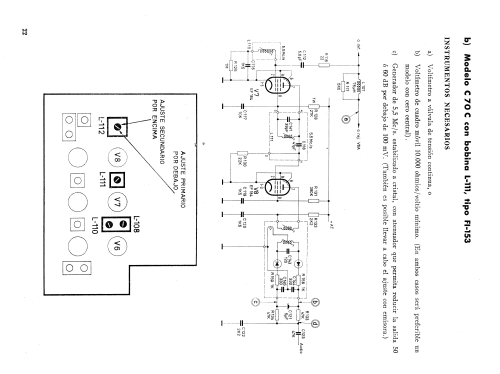

Schematics

C-70-C; Clarivox, S.A., (ID = 2390292) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2390293) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2390294) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503364) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503365) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503366) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503367) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503368) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503370) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503371) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503372) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503373) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503374) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503376) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503377) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503378) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503379) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503380) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503381) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503382) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503383) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503384) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503386) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503387) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503388) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503389) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503390) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503391) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503392) Television — Clarivox, S.A., C-70-C (3)

C-70-C; Clarivox, S.A., (ID = 2503393) Television — Clarivox, S.A., C-70-C (3)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
PC900 PCF801 EF183 EF183 EF184 PCL200 EF184 EF184 PCL86 PCL84 PCL805 or PCL85 EAA91 PCF802 PL504 or PL500 PY88 DY802 or DY87 unknown_CRT

Conflicting model year with tube data.
The model date contradicts tube dates. [ DY802 (1967) PCL805 (1968)]

Number of Transistors

Semiconductors
E125C500

Main principle
Superhet with RF-stage; ZF/IF 38900 kHz

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 125; 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

from Radiomuseum.org
Model: C-70-C [con PCL84] - Clarivox, S.A., Electrónica;

Shape
Tablemodel, low profile (big size).

Notes
Platina de TV en B/N a válvulas con selector rotativo de VHF y sintonizador transistorizado de UHF, vendida en la década de los 60 y 70.

Las más modernas, véase Clarivox C-70-C (con PCL200) podían venir con:
- PCL200 en lugar de PCL84
- PCL805 en lugar de PCL85
- PL504 en lugar de PL500
- DY802 en lugar de DY87
La caja externa puede cambiar al ser comprada aparte por el montador.

Literature/Schematics (1)
-- Schematic

Author
Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
