- Country
- Spain
- Manufacturer / Brand
- Clarivox, S.A., Electrónica; Zaragoza
- Year
- 1972 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 310005
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- PC900 PCF801 EF183 EF183 EF184 PCL84 EF184 EF184 PCL86 PCH200 PCL805 EAA91 PCF802 PL504 PY88 DY802 unknown_CRT
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- from Radiomuseum.org
- Model: P77B - Clarivox, S.A., Electrónica;
- Shape
- Tablemodel, low profile (big size).
- Notes
-

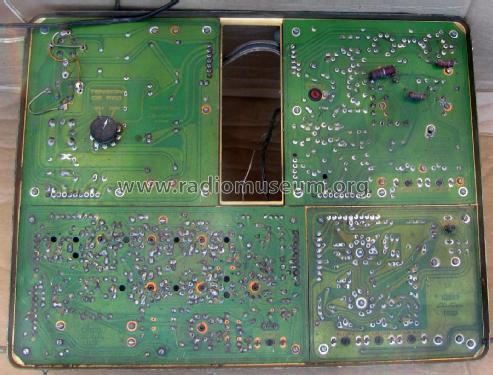

Platina de TV en B/N con selector rotativo de VHF y sintonizador de UHF transistorizado
En los modelos posteriores mediados la epoca de los 70 se montaba en el mismo modelo un diodo rectificador de estado solido en lugar de la lampara DY802.
La caja externa puede cambiar al ser comprada aparte por el montador.
- Author
- Model page created by Andres Diaz-Alvarez. See "Data change" for further contributors.
- Other Models
-
Here you find 40 models, 13 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Clarivox, S.A., Electrónica; Zaragoza
