• Country
• Great Britain (UK)

• Manufacturer / Brand
• Clarke & Smith MFG Co. Ltd.; Wallington, Surrey

• Year
• 1961 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 350330

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECH42 EF41 EBC41 EBC41 ECC83 EM34 EL41 EL41 EZ40

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

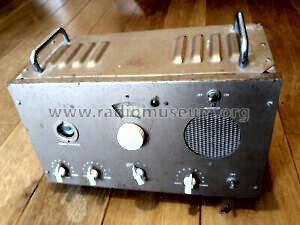

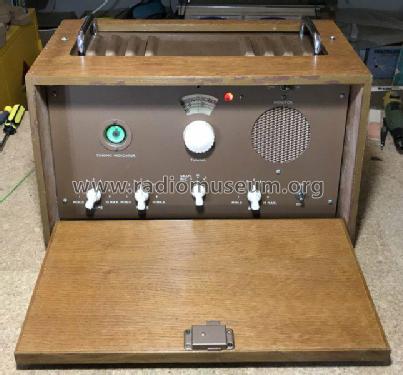

• Model: Schools Broadcast Receiver 88/8-2 - Clarke & Smith MFG Co. Ltd.;

• Shape
• Tablemodel, with any shape - general.

• Notes

• Inputs for microphone and gramaphone

  Switchable monitor speaker on front panel

• Author
• Model page created by Clive Forder. See "Data change" for further contributors.
