• Country
• United States of America (USA)

• Manufacturer / Brand
• Clarodyne; USA

• Year
• 1925 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 315025

• Number of Tubes
• 4

• Valves / Tubes
• 201A 201A 201A 201A

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 6 & 90 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

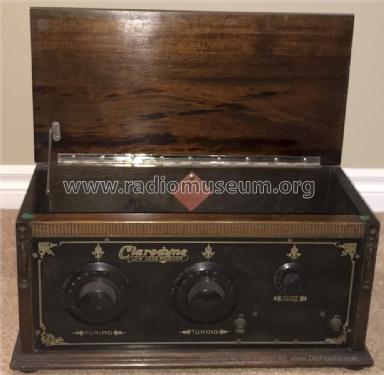

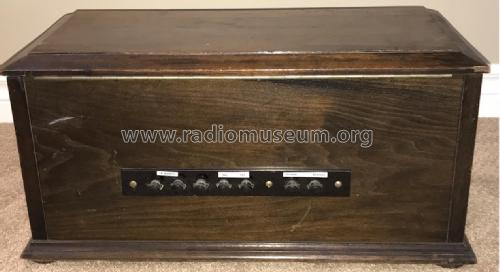

• Model: Low Loss Receiver - Clarodyne; USA

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 9 x 9 x 20 inch / 229 x 229 x 508 mm

• Author
• Model page created by Jim Hutton. See "Data change" for further contributors.

• Other Models

• Here you find 4 models, 4 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
