• Country
• Australia

• Manufacturer / Brand
• Classic Radio & Television Pty. Ltd.; Melbourne, VIC

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 189033

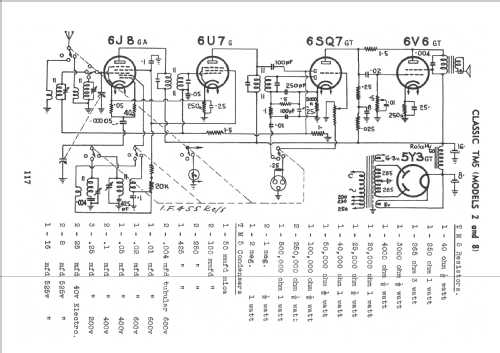

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6J8GA 6U7G 6SQ7GT 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 200; 230; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 8 TM5 - Classic Radio & Television Pty

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VIII

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
