• Country
• Germany

• Manufacturer / Brand
• Clatronic; Kempen (bei Krefeld)

• Year
• 2000 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 218085

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 3x 1,5 / 3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 cm = 2.4 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

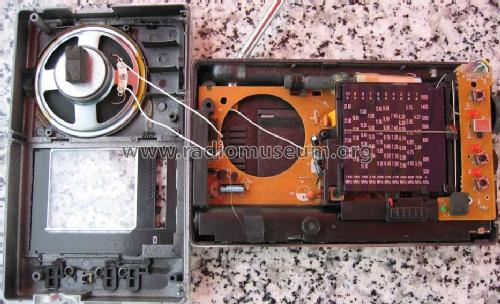

• Model: Weltempfänger WE-611 - Clatronic; Kempen bei Krefeld

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 160 x 100 x 35 mm / 6.3 x 3.9 x 1.4 inch

• Notes
• Weltempfänger FM/MW/SW1-10 KW 13-75m Band

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Author
• Model page created by Gerhard Härtl. See "Data change" for further contributors.
