DC Micro-Volt Ammeter MV-07C

Claude Lyons Limited; Hoddesdon, Hertfordshire

Data
Forum
Pictures
Collections

  • Year
  • 1966 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 339642

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Other, details in remarks or not known.
  • Loudspeaker
  • - - No sound reproduction output.
  • from Radiomuseum.org
  • Model: DC Micro-Volt Ammeter MV-07C - Claude Lyons Limited;
  • Notes

  • This is an instrument capable of measuring as low as 1 µV and 1 µµA DC.
    The meter has a centre-zero, 6" mirror scale.
    17 voltage ranges from ± 10 µV to ± 1,000 V f.s.d.
    17 current ranges from ± 10 µµA to ± 1 mA  f.s.d.
    Accuracy generally ± 1% for volts and ± 2% for current ( ± 4% on most sensitive ranges).
    Output ± 1.25 V at f.s.d. (1-4 mA).

  • Mentioned in

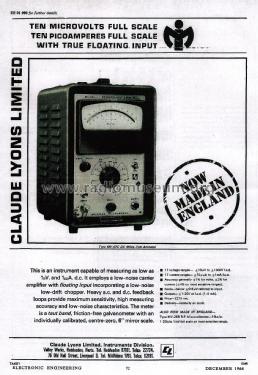

  • -- Original prospect or advert ("Electronic Engineering" volume 38, number 466 December 1966.)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
