Variac 200 Series

Claude Lyons Limited; Hoddesdon, Hertfordshire

Data
Forum
Pictures
Collections

  • Year
  • 1954 ?
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 353643

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 115 or 230 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Variac 200 Series - Claude Lyons Limited;
  • Shape
  • Chassis only or for «building in»
  • Notes

  • A series of four "Variac", voltage continuously adjustable auto-transformers.


    Type Load Input Current Current Output No Load
           V Rated A   Max A     V   Loss
    200-CM  860 VA  115       5      7.5   0-135 15 Watts
    200-CU 860 VA  115       5      7.5  0-135 15 Watts
    200-CMH 580 VA   230       2      2.5  0-270 20 Watts
    200-CUH 580 VA  115     0.5      2.5    0-270 20 Watts



  • Mentioned in

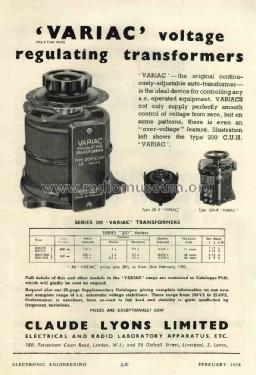

  • -- Original prospect or advert (Electronic Engineering Feb 1954, Page 40.)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
