Goldcrest RFAA60
Cleartone Radio Co.; Cincinnati, OH
- Country
- United States of America (USA)
- Manufacturer / Brand
- Cleartone Radio Co.; Cincinnati, OH
- Year
- 1923
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 35342
-
- Brand: Goldcrest Clearodyne (Clear-O-Dyne)
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Goldcrest RFAA60 - Cleartone Radio Co.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes

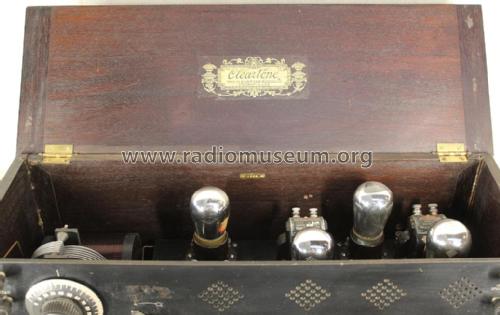

- The Cleartone Model RFAA-60 was a four tube unit comprising one stage of RF Amplification, Detector and two stages of Audio Amplification set in a solid mahogany cabinet. The wave length range is 270 to 600 meters. One dial (primary tuning control knob)
- Price in first year of sale
- 60.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Literature/Schematics (4)
- September 1923 Radio News advertisement page 332
