• Country
• United States of America (USA)

• Manufacturer / Brand
• Clegg Laboratories; Mt.Tabor (NJ)

• Year
• 1957

• Category
• Amateur Transmitter (only)

• Radiomuseum.org ID
• 120106

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6BH6 5763 5763 2E26 4X150A 6Y6GT 6AU6 12AU7 807 807 5U4 5R4G 5R4G

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

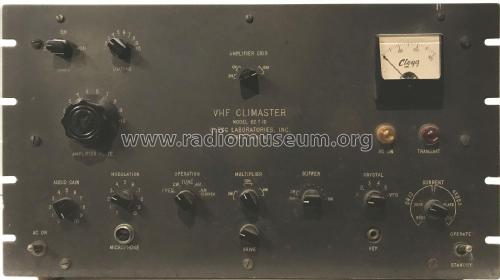

• Model: Climaster 62T10 - Clegg Laboratories; Mt.Tabor

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 19 x 10.62 x 14.25 inch / 483 x 270 x 362 mm

• Notes
• Clegg HF-/VHF-Transceiver Climaster 62T10.
  Multistage AM/CW transmitter covering the 11/10, 6 and 2 m HAM band, extern VFO or intern xtals; P_out: 150 W in CW, 100 W in AM.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
