• Country
• United States of America (USA)

• Manufacturer / Brand
• Clegg Laboratories; Mt.Tabor (NJ)

• Year
• 1965 ??

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 120119

• Main principle
• RF-Circuit or wave trap (separate, can also be an antenna with amp.)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

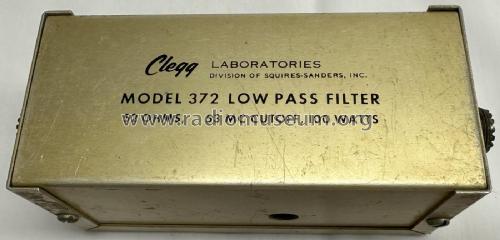

• Model: Lo-Pass Filter 372 - Clegg Laboratories; Mt.Tabor

• Shape
• Tablemodel, with any shape - general.

• Notes
• TVI filter, operates at 10 and 6 m ham band including CB, UHF female connectors, adjustable notch filter up to 35 dB at any frequency from 55 to 68 MHz, more than 40 dB above 68 MHz.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by a member from A. See "Data change" for further contributors.
