- Country
- United States of America (USA)
- Manufacturer / Brand
- Climax Radio & Television Co, Inc.; Chicago, IL
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170466
-
- alternative name: Amplitron

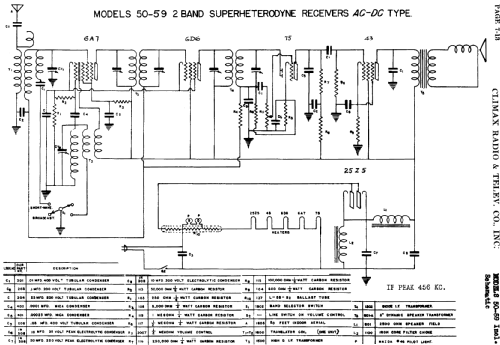

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- L55S2
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: 53 - Climax Radio & Television Co,
- Notes
- Ballast tube "L55-S2"
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
