- Country
- United States of America (USA)
- Manufacturer / Brand
- Climax Radio & Television Co, Inc.; Chicago, IL
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 35379
-
- alternative name: Amplitron
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: AC-65 - Climax Radio & Television Co,
- External source of data
- Ernst Erb

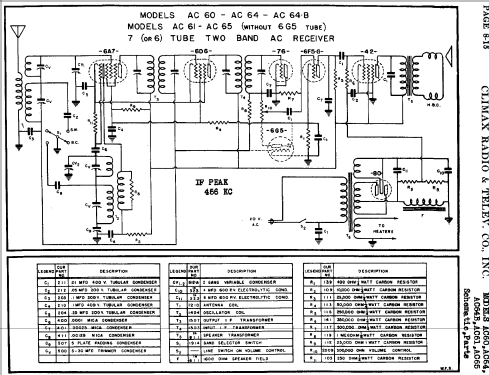

- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
