- Country
- United States of America (USA)
- Manufacturer / Brand
- Clinton Mfg.Co.; Chicago, IL
- Year
- 1936 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 295710

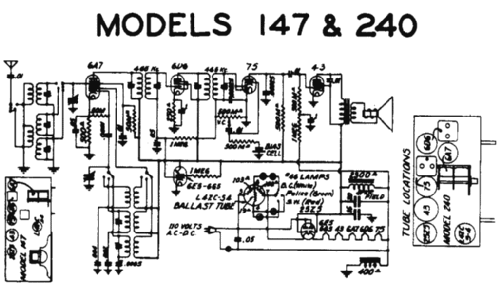

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- L42C-54
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 147 - Clinton Mfg.Co.; Chicago, IL
- Notes
-
The model 147 requies a special L42C-54 ballast tube for operation of the shortwave band indicator lamps. If a standard L42C ballast is used, a 20 ohm, 2 watt, resistor should be connected between pins 4 and 8 of the ballast tube socket. The radio will operate with a standard L42C ballast tube but the shortwave lamps will not light.
- Literature/Schematics (1)
- Gernsback Official Radio Service Manual (Vol 7)
- Author
- Model page created by Jay Kinnard. See "Data change" for further contributors.
