- Country
- United States of America (USA)
- Manufacturer / Brand
- Clinton Mfg.Co.; Chicago, IL
- Year
- 1934 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 295466
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Power type and voltage
- AC/DC-set / 110-120 Volt

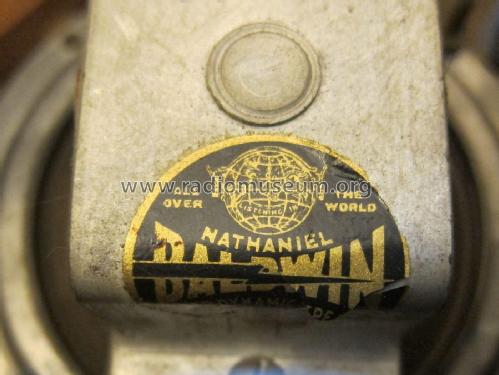

- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Cub - Clinton Mfg.Co.; Chicago, IL
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 11 x 11 x 6 inch / 279 x 279 x 152 mm
- Notes
-
Cub is one of the trade names used by Clinton.
Model number of this radio is unknown.

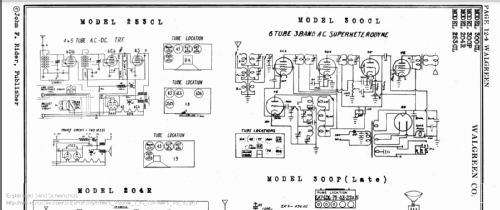

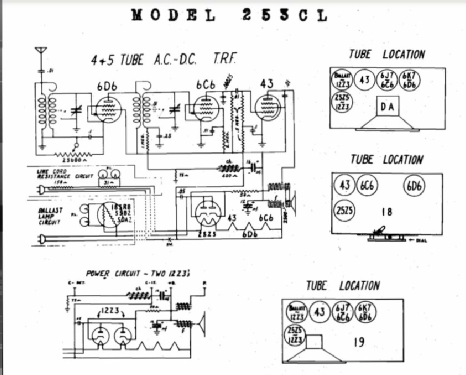

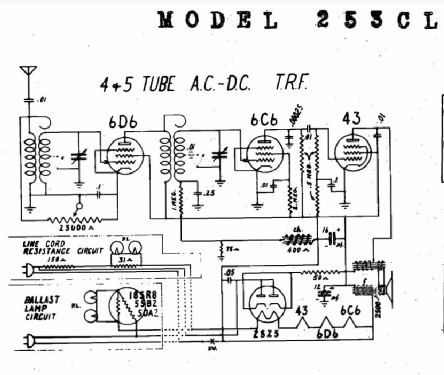

A very similar model is the Walgreen 253CL 5-tube
- Author
- Model page created by Jay Kinnard. See "Data change" for further contributors.
