K O Radio
Clinton Mfg.Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Clinton Mfg.Co.; Chicago, IL
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 330820
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

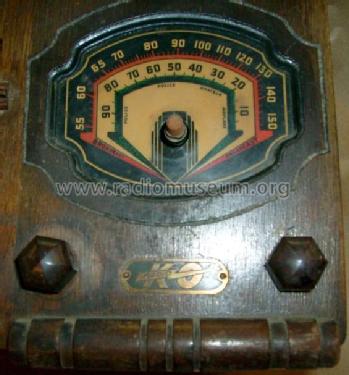

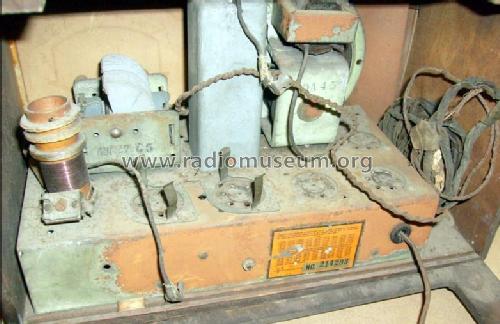

- Model: K O Radio - Clinton Mfg.Co.; Chicago, IL
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 9 x 7 inch / 305 x 229 x 178 mm
- Notes
-
Similar to Clinton model 127.
Schematic for Clinton model 215 with resistance power cord should apply.
- Author
- Model page created by Jay Kinnard. See "Data change" for further contributors.
