Unknown 2

Clinton Mfg.Co.; Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1933–1935 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 295958

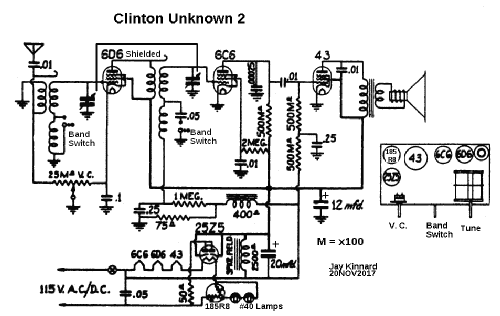

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF without regeneration; 1 AF stage(s)
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 110-120 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: Unknown 2 - Clinton Mfg.Co.; Chicago, IL
  • Notes

  • The tube layout for this chassis is similar to model 195 but uses a 4 pin glass ballast tube instead of a K55C octal metal ballast.

    The glass ballast tube and the Nathanial Baldwin speaker indicate that this is a pre-1936 chassis.

    This chassis was used with different control layout in one or more Silver radios but the model number(s) are unknown.

  • Author
  • Model page created by Jay Kinnard. See "Data change" for further contributors.
