- Country
- United States of America (USA)
- Manufacturer / Brand
- Clough-Brengle Co., Chicago (IL)
- Year
- 1935
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 263231

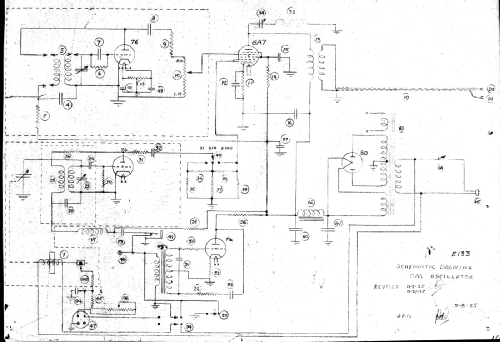

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: OM - Clough-Brengle Co., Chicago IL
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 11.8 x 8.5 x 12 inch / 300 x 216 x 305 mm
- Notes
-

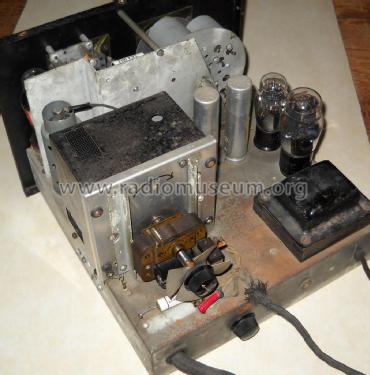

The Clough-Brengle model OM is a sweep generator covering the range of 100 Khz to 30 Mhz in 5 ranges, the sweep width is 30 Khz wide on all ranges. Using the B voltage from the receiver under test, a sawtooth voltage is provided for the horizontal axis of an oscilloscope. The sweep motor can be switched off and a knob on the rear alows tuning manually through the sweep range.
- Net weight (2.2 lb = 1 kg)
- 23.5 lb (23 lb 8 oz) / 10.669 kg
- Author
- Model page created by Allen Lein. See "Data change" for further contributors.
