Unimeter 185
Clough-Brengle Co., Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Clough-Brengle Co., Chicago (IL)
- Year
- 1939
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 224232
- Wave bands
- - without
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Unimeter 185 - Clough-Brengle Co., Chicago IL
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 9.13 x 9.25 x 4.4 inch / 232 x 235 x 112 mm
- Notes
-
DC Volts: 5 - 20 - 100 - 500 - 1000
AC Volts: 8 - 32 - 160 - 800 - 1600
DC mAmp: 0.5 - 10 - 100
Ohms: 4 kΩ 40 kΩ 4 MΩ, with ext. battery 20 MΩ.
- Net weight (2.2 lb = 1 kg)
- 9 lb (9 lb 0 oz) / 4.086 kg
- Price in first year of sale
- 30.00 USD
- Mentioned in

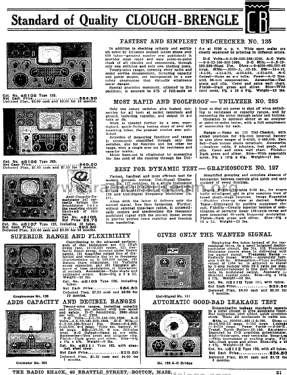

- Radio Shack Catalog (1939, page 21)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
