• Country
• Great Britain (UK)

• Manufacturer / Brand
• Co-operative Wholesale Society (CWS) - Defiant; Manchester

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103444

• • Brand: Defiant

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 × 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.75 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

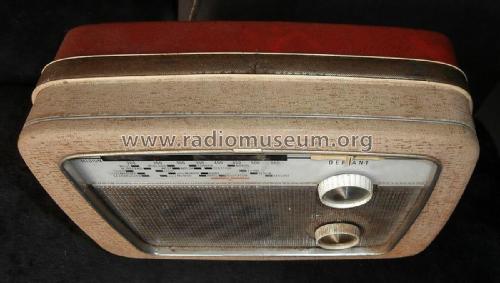

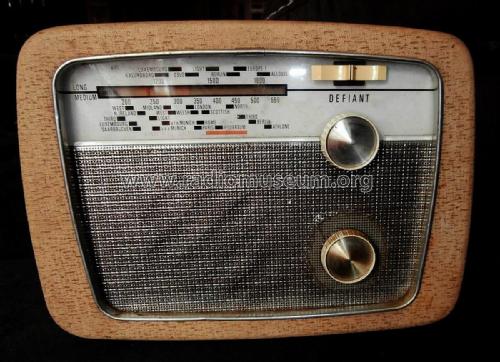

• Model: Defiant A58 - Co-operative Wholesale Society

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Portable radio with MW bandspread. Fitted with sockets for car aerial, tape, & 2 earphone sockets. Battery type PP9. Similar to model Defiant A55 De Luxe.

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Trader Sheet 1810

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
