Defiant MSH952
Co-operative Wholesale Society (CWS) - Defiant; Manchester
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Co-operative Wholesale Society (CWS) - Defiant; Manchester
- Year
- 1939 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331105
-
- Brand: Defiant
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 450 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Defiant MSH952 - Co-operative Wholesale Society
- Shape
- Tablemodel, low profile (big size).
- Notes
-

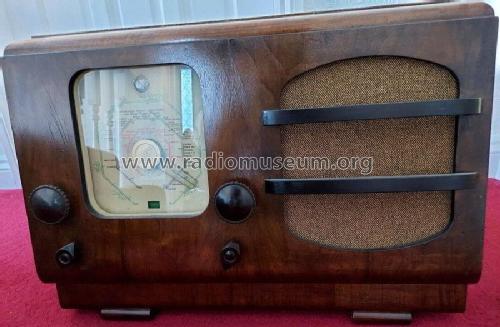

An AC mains 3 band superhet table radio housed in a wooden case. With tone control, magic eye, sockets for extension loudspeakers, terminals for mains/external aerial, earth and gramophone pickup and a switch for gram/radio.
Wave Ranges:
SW: 13 - 54 Metres
MW: 180 - 550 Metres
LW: 900 - 2000 Metres
- Literature/Schematics (1)
- - - Manufacturers Literature (CWS Service Instructions Defiant MSH952)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
