All Mains Superhet Receiver MSH901 AC

Co-operative Wholesale Society (CWS) - Defiant; Manchester

Data
Forum
Pictures
Collections

  • Year
  • 1934 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 93744
    • Brand: Defiant

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 195-250 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: All Mains Superhet Receiver MSH901 [AC] - Co-operative Wholesale Society
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 15.3 x 20 x 10.65 inch / 389 x 508 x 271 mm
  • Notes

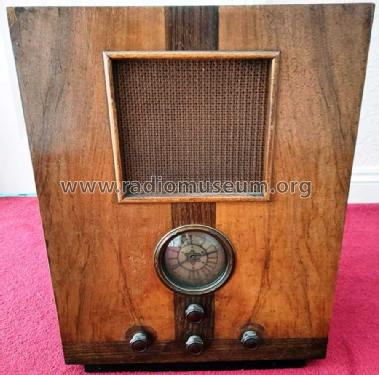

  • An AC mains 2 band superhet table radio housed in a wooden case. Price 11½ guineas. Also available the Defiant MSH901 AC/DC mains version.

  • Price in first year of sale
  • 12.08 £
  • Source of data
  • -- Collector info (Sammler)
  • Mentioned in
  • - - Manufacturers Literature (CWS Defiant radio advertisement)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
