52A134
Coast to Coast Stores
- Country
- United States of America (USA)
- Manufacturer / Brand
- Coast to Coast Stores
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290268
-
- Brand: Musicaire

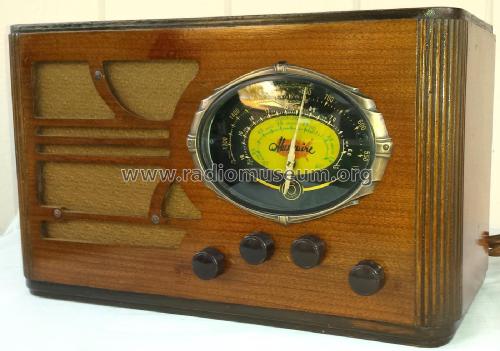

From personal collection
From my personal collection

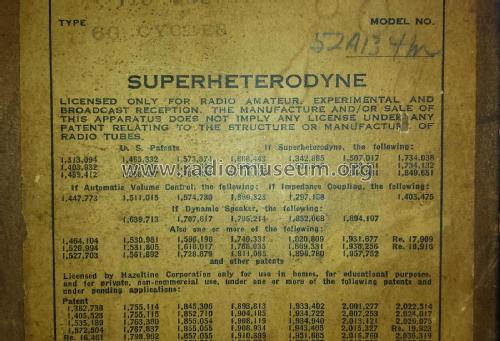

From my personal collection
From my personal collection
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 52A134 - Coast to Coast Stores
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 17.75 x 10.75 x 9 inch / 451 x 273 x 229 mm
- Notes
-

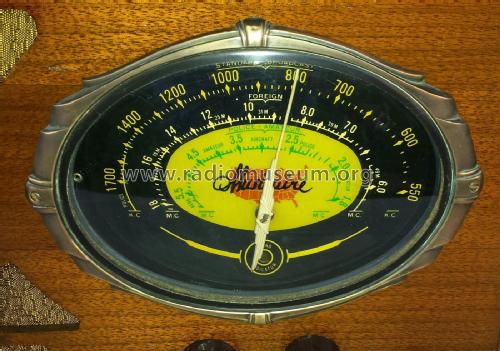

Three bands with tuning ranges 540 to 1720 kc, 1.7 to 5.6 and 5.8 to 18.1 Mc. AVC, variable tone control. 6 inch speaker.
Schematic may be similar to Sentinel model 52A.
Similar in style to Musicaire 68B131M.
- Author
- Model page created by Dennis Craft. See "Data change" for further contributors.
