Transceiver 7303

Codan Pty. Ltd.; Adelaide

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Commercial Transmitter & Receiver (TRX not Amateur)
  • Radiomuseum.org ID
  • 341788

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 1650 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage

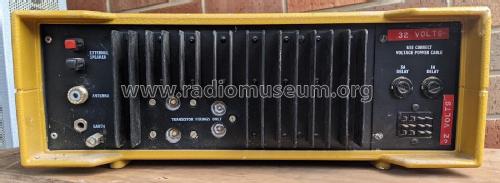

  • Batteries / addl. power jack / 32 or 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 50 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Transceiver 7303 - Codan Pty. Ltd.; Adelaide
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

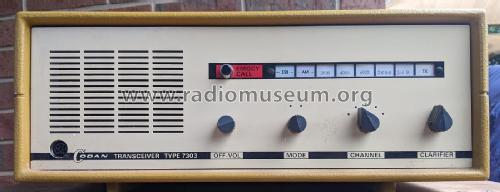

  • Codan 7303 HF Transceiver

    2-11 MHz, 5 channel, Fully solid state, 1650 kHz IF, 50 watts
    PEP, SSB (normally USB, and AM (H3E), output impedance
    50 ohms.

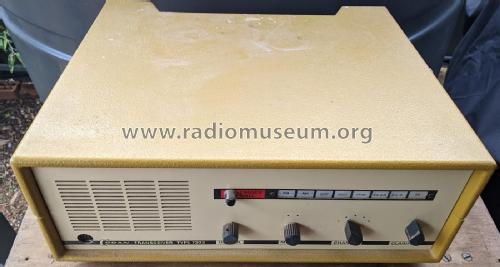

    This model was in the "homestead" style of set, whose appearance was designed to fit in with modern home styling.



  • Mentioned in
  • -- Original prospect or advert (CODAN - Outback radio to global communications - Part 2)
  • Author
  • Model page created by Keith Ellison. See "Data change" for further contributors.
