• Country
• Great Britain (UK)

• Manufacturer / Brand
• CODAR Radio Company (Electronics); Sussex, UK

• Year
• 1966 ??

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 198981

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 or 6AJ8 EBF89 or 6DC8 ECC81 or 12AT7 EL84 or 6BQ5 EM84 EZ80 or 6V4

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115; 200-250 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

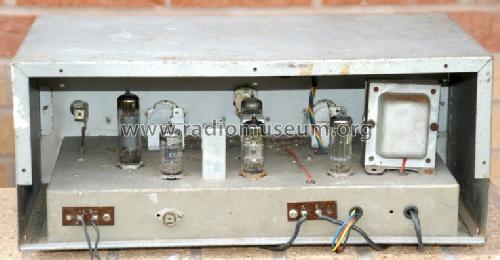

• Model: Communications Receiver CR66 - CODAR Radio Company

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 6.5 x 8.75 inch / 406 x 165 x 222 mm

• Notes
• Codar Communications Receiver CR66 (KIT);
  540 kHz - 30 MHz in 4 bands, electrical bandspread, BFO, 115 VAC by export version only.

• Mentioned in
• GB The Shortwave Magazine Volume XX, p.509
