• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• State (Brand) Wright, Stevenson & Co. Ltd.; Dunedin

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 232679

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7S7 7B7 7C6 7C5 7Y4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

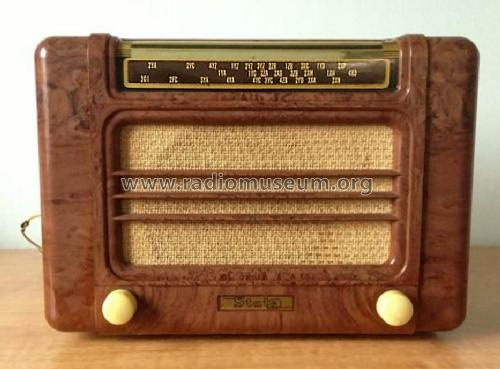

• Model: State 519P - State Brand Wright, Stevenson

• Shape
• Tablemodel, with any shape - general.

• Notes

• Loctal valves 7S7 7B7 7C6 7C5 7Y4. NZ call signs and frequency on scale.

  5 = five valves
  1 = one band
  9 = 1949 (if 1952 it would be 52)
  Suffix 'P' refers to permanet magnet speaker.

  Manufactured by Collier & Beale Ltd.

  See also HMV 495BC and Pacemaker 519P

• Author
• Model page created by Michael Watterson. See "Data change" for further contributors.
