• Country
• United States of America (USA)

• Manufacturer / Brand
• Collins Radio Company; Cedar Rapids (IA)

• Year
• 1960–1965 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 277625

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50/60 Hz, 115/230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

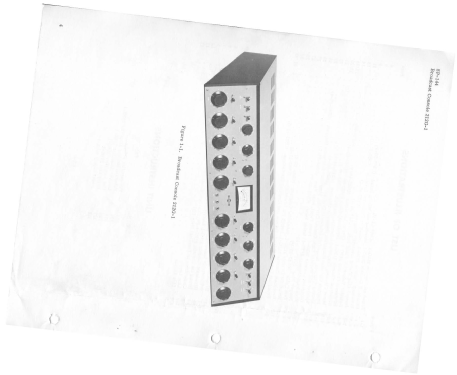

• Model: Broadcast Console 212G-1 - Collins Radio Company; Cedar

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 41 x 8.125 x 21.125 inch / 1041 x 206 x 537 mm

• Notes

• Number of tubes/valves varies with number of modules installed in mixing console

• Net weight (2.2 lb = 1 kg)
• 75 lb (75 lb 0 oz) / 34.050 kg

• Literature/Schematics (1)
• - - Manufacturers Literature (Collins Radio Company System Instructions SP-144 4th Edition, 15 October 1961)

• Author
• Model page created by David Dintenfass. See "Data change" for further contributors.
