• Country
• United States of America (USA)

• Manufacturer / Brand
• Collins Radio Company; Cedar Rapids (IA)

• Year
• 1944 ??

• Category
• Military Equipment (not Re, Tr or RXT)

• Radiomuseum.org ID
• 345069

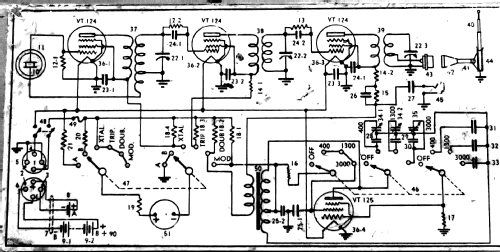

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• VT-124 VT-124 VT-124 VT-125

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit.

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: Test Oscillator US Signal Corps WWII BC-376A - Collins Radio Company; Cedar

• Dimensions (WHD)
• 230 x 150 x 160 mm / 9.1 x 5.9 x 6.3 inch

• Notes

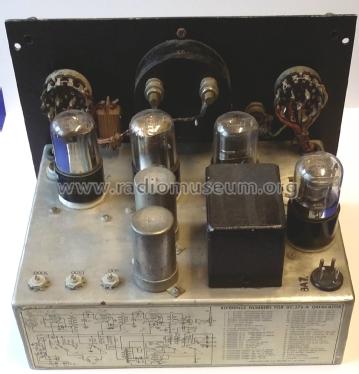

• Test Oscillator US Signal Corps Collins BC-376A WW II

  Modulierbare Ausgangsfrequenzen: 12,5 - 75 MHz

  CW or AM Modulated output frequencies: 12.5 - 75 MHz

  The BC-376A is the High Frequency part of a mobile test oscillator (test transmitter) with selectable output frequencies from 12.5 to 75 MHz.

  The output frequencies can be AM-modulated with internal test tones (off, 400, 1300, 3000 Hz).

  Year of manufacture and use unknown. Probably WW II US Signal Corps.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Author
• Model page created by Heinz-Helmuth Grimm. See "Data change" for further contributors.
