FM Receiver Kit
Collins Audio Products Co. Inc.; Westfield (NJ)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Collins Audio Products Co. Inc.; Westfield (NJ)
- Year
- 1952/1953
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 239409
Radio News, Advert, 1952-09, p.14
- Number of Tubes
- 15
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: FM Receiver Kit - Collins Audio Products Co. Inc
- Shape
- Chassis only or for «building in»
- Notes
-

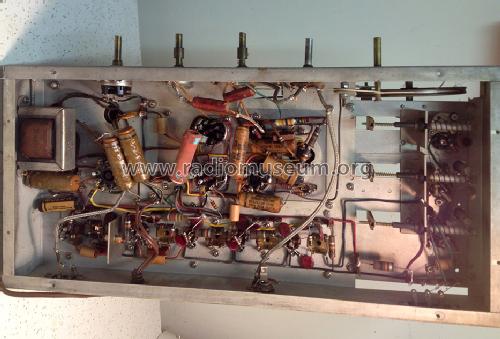

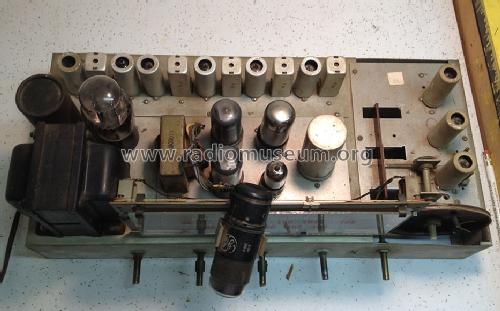

Complete FM receiver kit including all necessary parts for assembly and operation: punched chassis, dial assembly, power supply, tuning eye, wired and aligned components. 6 to 10 µV sensitivity, IF band with 200 KC, 20 to 20,000 cycle response. 6 watts output.
Bass and treble tone controls, phonograph input.
Weight specified is shipping weight.
- Net weight (2.2 lb = 1 kg)
- 20 lb (20 lb 0 oz) / 9.080 kg
- Price in first year of sale
- 78.50 $
- Mentioned in
- Radio News, Advert, 1952-09, p.14
- Author
- Model page created by Howard Zehr. See "Data change" for further contributors.
