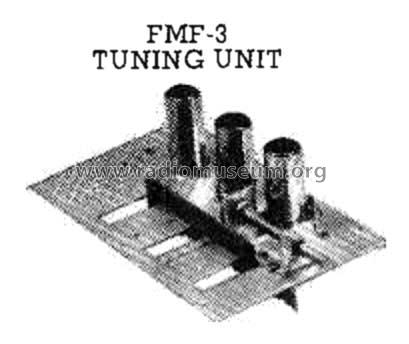

Tuning Unit FMF-3
Collins Audio Products Co. Inc.; Westfield (NJ)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Collins Audio Products Co. Inc.; Westfield (NJ)
- Year
- 1951
- Category
- Radio module post 1925 (not a part, not a key)
- Radiomuseum.org ID
- 239371
The assembled "pre-fab" tuner.
- Number of Tubes
- 3
- Main principle
- RF-Circuit or wave trap (separate, can also be an antenna with amp.)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Tuning Unit FMF-3 - Collins Audio Products Co. Inc
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 7 x 0 x 4.5 inch / 178 x 0 x 114 mm
- Notes
-
Permeability tuning with two tuned stages.
Kit element for building a Collins pre-fab tuner, which comprises of
- universal chassis kit UC-1
- tuning unit FMF-2 or FMF3
- IF amplifier IF-3, IF-4 or IF-6
Price in 1952 $15.25 with 6AG5 converter.
Shipping weight: FMF-3 2.5 lbs., dial 2 lbs.
- Net weight (2.2 lb = 1 kg)
- 2.5 lb (2 lb 8 oz) / 1.135 kg
- Price in first year of sale
- 14.50 $
- Mentioned in
- Advert in Radio & Television News, 1951-09, p.6
