• Country
• United States of America (USA)

• Manufacturer / Brand
• Colonial Radio Co.; Long Island and Buffalo, NY

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 35604

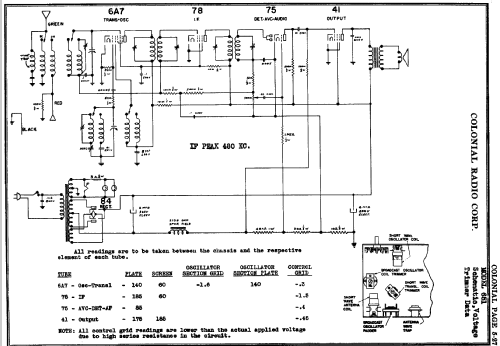

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 75 41 84

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 105-130 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

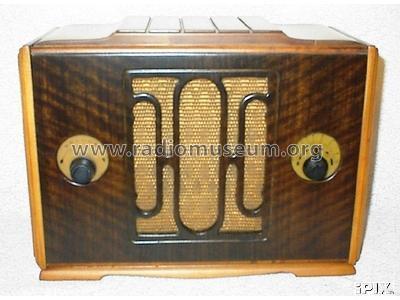

• Model: 651 - Colonial Radio Co.; Long

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 300 x 225 x 160 mm / 11.8 x 8.9 x 6.3 inch

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (3)

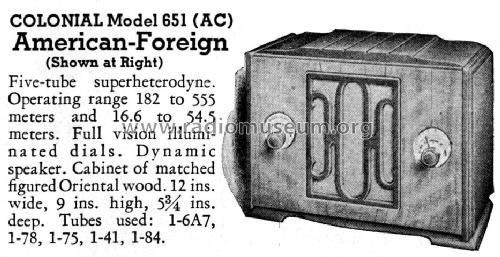

• The Colonial Folder for 1934.
