• Country
• United States of America (USA)

• Manufacturer / Brand
• Colonial Radio Co.; Long Island and Buffalo, NY

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 35883

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 58 58 or 24A 58 58 56 27 47 80

• Main principle
• Superheterodyne (common); ZF/IF 175 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

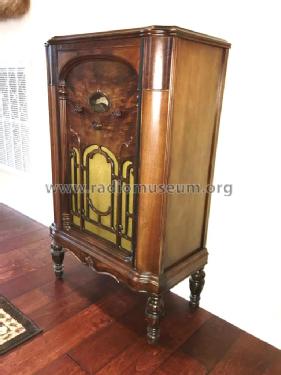

• Model: C-595 - Colonial Radio Co.; Long

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 24.75 x 39.25 x 12.5 inch / 629 x 997 x 318 mm

• Net weight (2.2 lb = 1 kg)
• 51 lb (51 lb 0 oz) / 23.154 kg

• Price in first year of sale
• 59.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

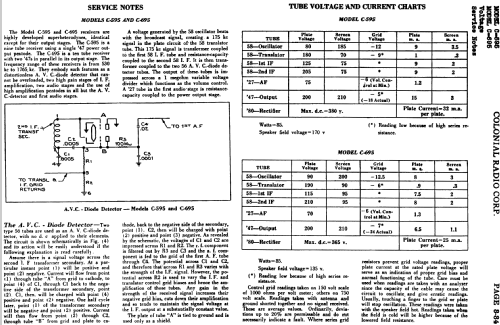

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Other Models

• Here you find 165 models, 75 with images and 131 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
