• Year
  • 1929
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 35539

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • TRF without regeneration; Screengrid 1926-1935
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Direct Current supply (DC) / 110; 120 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Moderne 32 DC - Colonial Radio Co.; Long
  • Shape
  • Console, Highboy (legs > 50 %).
  • Notes
  • Flat square box shaped highboy without doors. No stretcher base, just 4 feet. One dial (primary tuning control knob); push-pull af output stage.

  • Price in first year of sale
  • 270.00 $
  • External source of data
  • Ernst Erb
  • Literature/Schematics (2)

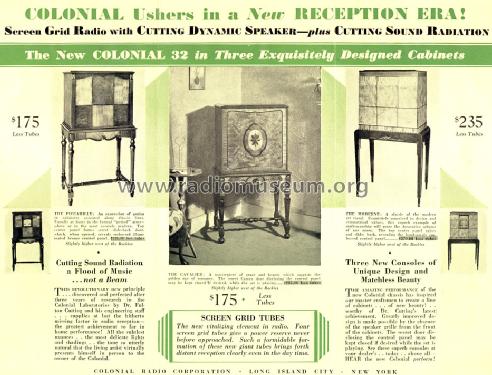

  • The Colonial Folder for 1929.
