Black Shadow SSB
Colt Communications, Inc.; Skokie / Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Colt Communications, Inc.; Skokie / Chicago, IL
- Year
- 1980 ?
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 291294

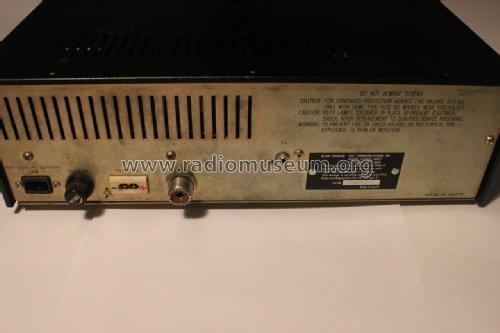

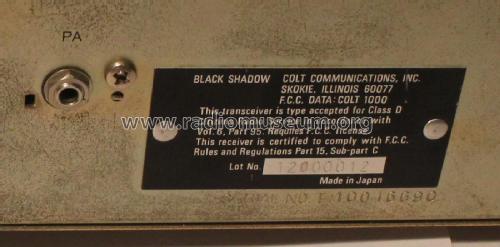

Sorry, here is the rear label
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 50-60 Hz, 105-120 / DC 13.8 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Black Shadow SSB - Colt Communications, Inc.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 330 x 100 x 250 mm / 13 x 3.9 x 9.8 inch
- Notes
-
Colt Black Shadow SSB is an AC mains or storage battery operated Citizen Band SSB Transceiver. RF Pout = 4 W
PLL chip part no. PLL02A.
See also the similar model Sommerkamp TS-740 SSB
Made in Japan.
- Author
- Model page created by Daniel Steve. See "Data change" for further contributors.
