Masterworks Series Model 872
CBS-Columbia Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170568
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

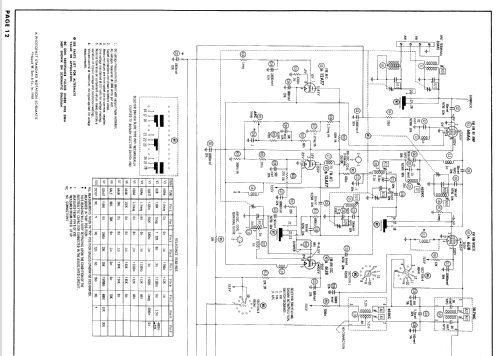

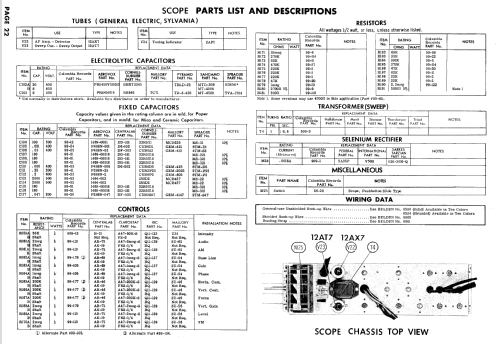

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 12AT7 12AT7 12AX7 12AU7 12AU7 12AU7 12AU7 12AU7 6L6GB 6L6GB 5U4GB 12AX7 12AX7 12AT7 12AT7 6SN7GT 6BA6 6U8 12AT7 6BA6 6BA6 6AU6 6AU6 6AL5 12AU7 5Y3GT 12AX7 12AT7 2AP1
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 5 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Masterworks Series Model 872 - CBS-Columbia Inc.; New York,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Columbia Records Masterworks Series Model 872 is a AC operated FM-AM Tuner and Amplifier with Tape Recorder + 4 Speed Automatic Record Player and consists of Chassis 515-S-1 FM-AM Tuner, Chassis 523-S-1 20-Watt Amplifier, Chassis 507-S-1 Preamplifier, Chassis 509-S-1 Osilloscope Tuning Indicator, 525-S-1 Tape Amplifier, 527-S-1 Tape Transport, 519-S-1 Program Clock and 513-S-1 or 529-S-1 Record Changer.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-58, Set 424, Folder 5)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
