- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Columbus (Brand); Radio Centre Ltd.; Wellington
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 338703

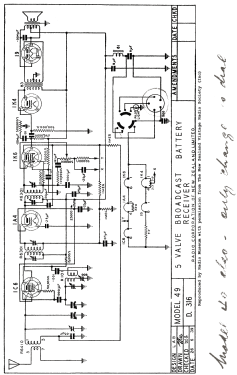

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Batteries / addl. power jack / 6 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: 49 - Columbus Brand; Radio Centre
- Shape
- Tablemodel, with any shape - general.
- Notes
-
5-Valve superhet broadcast (MW) battery powered receiver.
See also Model 59 DW.
Uses Type V8 vibrator pack.
Manufactured by Radio Corporation Of New Zealand Ltd for Columbus Radio Centre Ltd.
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
- Other Models
-
Here you find 169 models, 131 with images and 157 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Columbus (Brand); Radio Centre Ltd.; Wellington
