- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Columbus (Brand); Radio Centre Ltd.; Wellington
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 338700

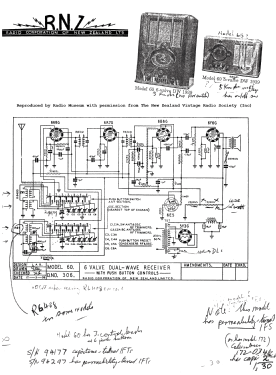

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 60 - Columbus Brand; Radio Centre
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-
6-Valve (including magic eye) superhet with push-button tuning.
Tombstone cabinet model. Also available in Table Chest and Console cabinets.
Manufactured by Radio Corporation Of New Zealand Ltd for Columbus Radio Centre Ltd.
- Mentioned in
- More Golden Age of Radio (Page 116)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
- Other Models
-
Here you find 168 models, 130 with images and 156 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Columbus (Brand); Radio Centre Ltd.; Wellington
