810 Console
Columbus (Brand); Radio Centre Ltd.; Wellington
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Columbus (Brand); Radio Centre Ltd.; Wellington
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 354663
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 50Hz, 230 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 810 [Console] - Columbus Brand; Radio Centre
- Shape
- Console with any shape - in general
- Notes
-

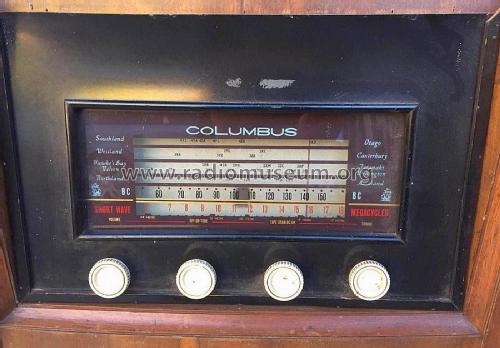

Columbus 810 Console
8-valve (including magic eye) superhet with RF stage dual wave console receiver with 10" & 6" speakers.
See also Columbus 810 Somerset radiogram, Columbus 810 Plymouth table radio. There was also a stereo version 810S.
Manufactured by Radio Corporation Of New Zealand Ltd for Columbus Radio Centre Ltd.
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
- Other Models
-
Here you find 169 models, 131 with images and 157 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Columbus (Brand); Radio Centre Ltd.; Wellington
