• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Columbus (Brand); Radio Centre Ltd.; Wellington

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 340132

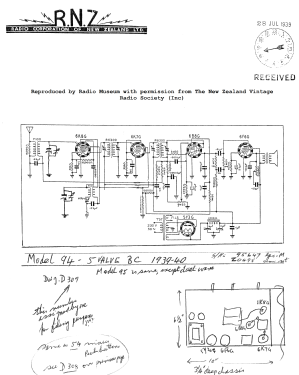

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8G 6K7G 6B8G 6F6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: 94 [Series 2] - Columbus Brand; Radio Centre

• Shape
• Tablemodel, with any shape - general.

• Notes

• 5-Valve superhet broadcast (MW) table chest model receiver.

  See also Columbus 94 (earlier model) & Columbus 95 dual wave version.

• Mentioned in
• -- Original prospect or advert (North Canterbury Gazette 28 September 1939 Page 6)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.

• Other Models

• Here you find 171 models, 133 with images and 159 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Columbus (Brand); Radio Centre Ltd.; Wellington
