• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Courtenay (Brand); Various manufacturers

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 332378

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AV6 6AQ5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

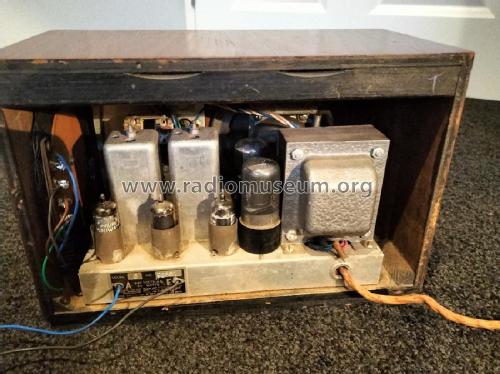

• Model: Courtenay Talisman 5 - Courtenay Brand; Various

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 285 x 195 x 170 mm / 11.2 x 7.7 x 6.7 inch

• Price in first year of sale
• 19.50 NZ £

• Mentioned in
• More Golden Age of Radio (Page 120)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
